XML Schema Documentation

Super-types:	xsd:normalizedString < QueryParameterOperator (by extension)
Sub-types:	None

Name	QueryParameterOperator
Used by (from the same schema document)	Complex Type QueryParameter
Abstract	no
Documentation	A type representing an operator describing the relationship of a value to its corresponding identifier for a parameter describing a query portfolio. Possible relationships include equals, not equals, less than, greater than. Possible operators are listed in the queryParameterOperatorScheme.

XML Instance Representation

<...
queryParameterOperatorScheme=" xsd:anyURI [0..1]"
id=" xsd:ID [0..1]">
xsd:normalizedString
</...>

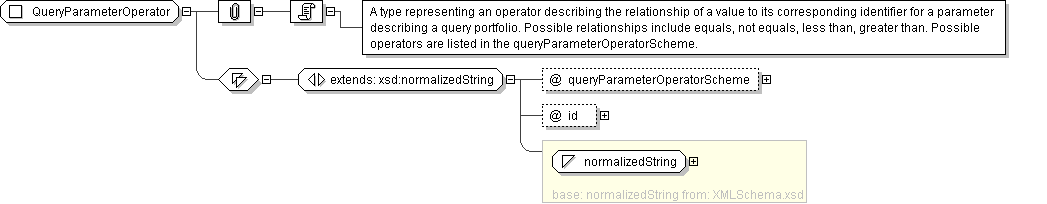

Diagram

Schema Component Representation

<xsd:complexType name="QueryParameterOperator">

<xsd:simpleContent>

<xsd:extension base=" xsd:normalizedString ">

<xsd:attribute name="queryParameterOperatorScheme" type=" xsd:anyURI " default="http://www.fpml.org/coding-scheme/query-parameter-operator-1-0"/>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
