XML Schema Documentation

Super-types:	Portfolio < QueryPortfolio (by extension)
Sub-types:	None

Name	QueryPortfolio
Abstract	no
Documentation	A type representing a portfolio obtained by querying the set of trades held in a repository. It contains trades matching the intersection of all criteria specified using one or more queryParameters or trades matching the union of two or more child queryPortfolios.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<partyPortfolioName> PartyPortfolioName </partyPortfolioName> [0..1]

'The name of the portfolio together with the party that gave the name.'

<tradeId> TradeId </tradeId> [0..*]

<portfolio> Portfolio </portfolio> [0..*]

'An arbitary grouping of trade references (and possibly other portfolios).'

<queryParameter> QueryParameter </queryParameter> [1..*]

</...>

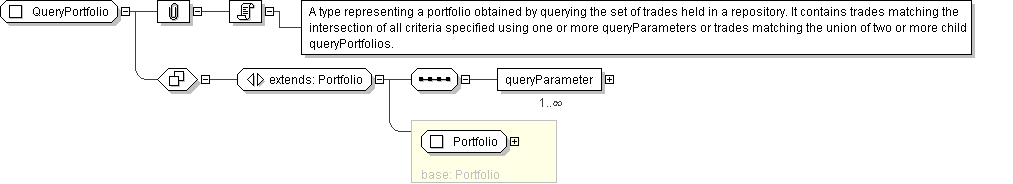

Diagram

Schema Component Representation

<xsd:complexType name="QueryPortfolio">

<xsd:complexContent>

<xsd:extension base=" Portfolio ">

<xsd:sequence>

<xsd:element name="queryParameter" type=" QueryParameter " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
