XML Schema Documentation

Super-types:	Product < Strategy (by extension)
Sub-types:	None

Name	Strategy
Used by (from the same schema document)	Element strategy
Abstract	no
Documentation	A type defining a group of products making up a single trade.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<productType> ProductType </productType> [0..*]

'A classification of the type of product. FpML defines a simple product categorization using a coding scheme.'

<productId> ProductId </productId> [0..*]

'A product reference identifier allocated by a party. FpML does not define the domain values associated with this element. Note that the domain values for this element are not strictly an enumerated list.'

<premiumProductReference> ProductReference </premiumProductReference> [0..1]

'Indicates which product within a strategy represents the premium payment.'

<product> ... </product> [1..*]

</...>

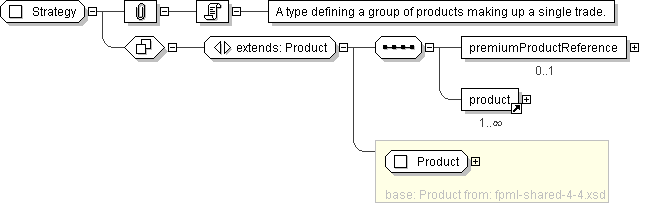

Schema Component Representation

<xsd:complexType name="Strategy">

<xsd:complexContent>

<xsd:extension base=" Product ">

<xsd:sequence>

<xsd:element name="premiumProductReference" type=" ProductReference " minOccurs="0"/>

<xsd:element ref=" product " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: Strategy
