XML Schema Documentation

Super-types:	xsd:normalizedString < MessageAddress (by extension)
Sub-types:	None

Name	MessageAddress
Used by (from the same schema document)	Model Group MessageHeader.model , Model Group MessageHeader.model , Model Group MessageHeader.model
Abstract	no
Documentation	The data type used for identifying a message address. It includes a partyIdScheme for keeping the type backward compatible with the PartyId complex type. In the next major version, partyIdScheme attribute will be replaced by a messageAddressScheme attribute.

XML Instance Representation

<...
partyIdScheme=" xsd:anyURI [0..1]">
xsd:normalizedString
</...>

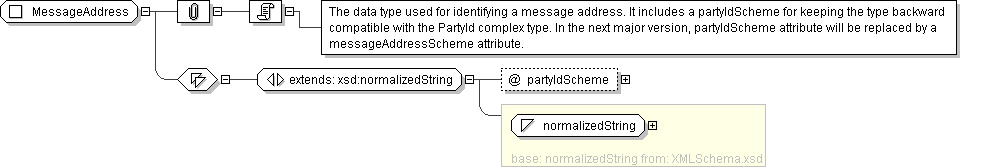

Diagram

Schema Component Representation

<xsd:complexType name="MessageAddress">

<xsd:simpleContent>

<xsd:extension base=" xsd:normalizedString ">

<xsd:attribute name="partyIdScheme" type=" xsd:anyURI " default="http://www.fpml.org/ext/iso9362"/>

</xsd:extension>

</xsd:simpleContent>

</xsd:complexType>
