XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	SensitivitySet
Used by (from the same schema document)	Complex Type Quotation
Abstract	no
Documentation	A collection of sensitivities. References a definition that explains the meaning/type of the sensitivities.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<name> xsd:string </name> [0..1]

<definitionReference> SensitivitySetDefinitionReference </definitionReference> [0..1]

'A reference to a sensitivity set definition.'

<sensitivity> Sensitivity </sensitivity> [0..*]

</...>

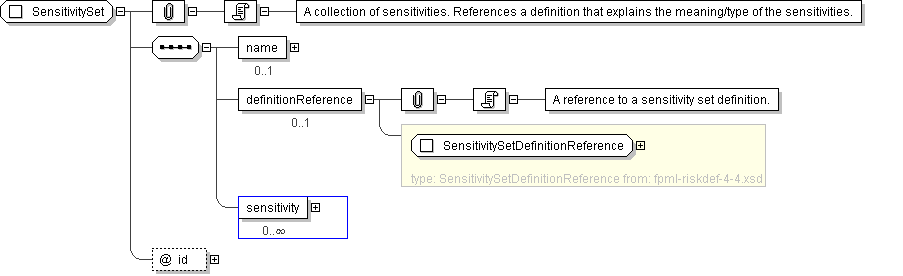

Diagram

Schema Component Representation

<xsd:complexType name="SensitivitySet">

<xsd:sequence>

<xsd:element name="name" type=" xsd:string " minOccurs="0"/>

<xsd:element name="definitionReference" type=" SensitivitySetDefinitionReference " minOccurs="0"/>

<xsd:element name="sensitivity" type=" Sensitivity " minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
