XML Schema Documentation

Super-types:	Product < FacilityIdentifier (by extension)
Sub-types:	None

Name	FacilityIdentifier
Used by (from the same schema document)	Model Group FacilityNoticeDetails.model
Abstract	no
Documentation	A reference to a single credit limit within a deal (also referred to in the secondary markets as a 'tranche'). The list of ids should include the value of the id and a system reference to denote which internal/external source created the id.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<productType> ProductType </productType> [0..*]

'A classification of the type of product. FpML defines a simple product categorization using a coding scheme.'

<productId> ProductId </productId> [0..*]

'A product reference identifier allocated by a party. FpML does not define the domain values associated with this element. Note that the domain values for this element are not strictly an enumerated list.'

<facilityName> xsd:string </facilityName> [0..1]

'The name by which the facility is referred to within the credit agreement.'

Start Choice [0..1]

<currency> Currency </currency> [1]

'Facility denomination currency.'

<originalCommitmentAmount> Money </originalCommitmentAmount> [1]

'Original global commitment amount of the facility.'

End Choice
</...>

Schema Component Representation

<xsd:complexType name="FacilityIdentifier">

<xsd:complexContent>

<xsd:extension base=" Product ">

<xsd:sequence>

<xsd:element name="facilityName" type=" xsd:string " minOccurs="0"/>

<xsd:choice minOccurs="0">

<xsd:element name="currency" type=" Currency "/>

<xsd:element name="originalCommitmentAmount" type=" Money "/>

</xsd:choice>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

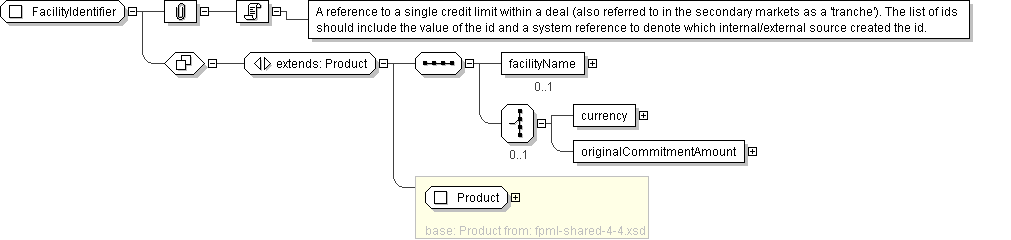

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: FacilityIdentifier
