XML Schema Documentation

Complex Type: CommodityAmericanExercise

[Table of contents]

Super-types: SharedAmericanExercise < CommodityAmericanExercise (by extension)
Sub-types: None
Name CommodityAmericanExercise
Used by (from the same schema document) Complex Type CommodityExercise
Abstract no
Documentation A type for defining exercise procedures associated with an American style exercise of a commodity option. This entity inherits from the type SharedAmericanExercise.
XML Instance Representation
<...
id=" xsd:ID [0..1]">
<commencementDate> AdjustableOrRelativeDate </commencementDate> [1]

'The first day of the exercise period for an American style option.'

<expirationDate> AdjustableOrRelativeDate </expirationDate> [1]

'The last day within an exercise period for an American style option. For a European style option it is the only day within the exercise period.'

<latestExerciseTime> BusinessCenterTime </latestExerciseTime> [0..1]

'For a Bermuda or American style option, the latest time on an exercise business day (excluding the expiration date) within the exercise period that notice can be given by the buyer to the seller or seller\'s agent. Notice of exercise given after this time will be deemed to have been given on the next exercise business day.'

<expirationTime> BusinessCenterTime </expirationTime> [0..1]

'The specific time of day on which the option expires.'

<multipleExercise> CommodityMultipleExercise </multipleExercise> [0..1]

'The presence of this element indicates that the option may be partially exercised. It is not applicable to European or Asian options.'

</...>

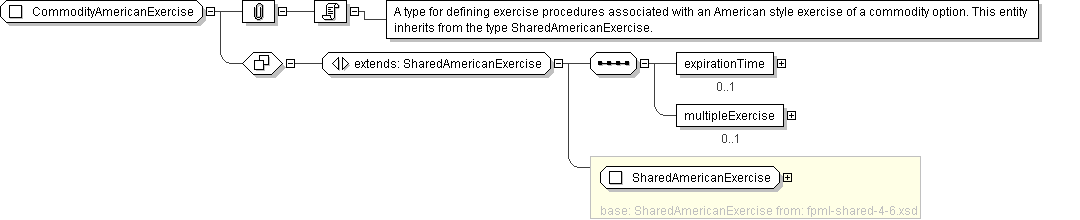

Diagram
Schema Component Representation
<xsd:complexType name="CommodityAmericanExercise">
<xsd:complexContent>
<xsd:extension base=" SharedAmericanExercise ">
<xsd:sequence>
<xsd:element name="expirationTime" type=" BusinessCenterTime " minOccurs="0"/>
<xsd:element name="multipleExercise" type=" CommodityMultipleExercise " minOccurs="0"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
