XML Schema Documentation

Complex Type: CommodityEuropeanExercise

[Table of contents]

Super-types:	Exercise < CommodityEuropeanExercise (by extension)
Sub-types:	None

Name	CommodityEuropeanExercise
Used by (from the same schema document)	Complex Type CommodityExercise
Abstract	no
Documentation	A type for defining exercise procedures associated with a European style exercise of a commodity option.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<expirationDate> AdjustableOrRelativeDate </expirationDate> [1]

'The last day within an exercise period for an American style option. For a European style option it is the only day within the exercise period. For an averaging option this is equivalent to the Termination Date.'

<expirationTime> BusinessCenterTime </expirationTime> [0..1]

'The specific time of day on which the option expires.'

</...>

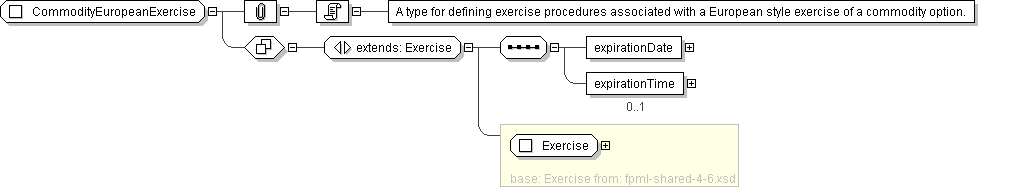

Diagram

Schema Component Representation

<xsd:complexType name="CommodityEuropeanExercise">

<xsd:complexContent>

<xsd:extension base=" Exercise ">

<xsd:sequence>

<xsd:element name="expirationDate" type=" AdjustableOrRelativeDate "/>

<xsd:element name="expirationTime" type=" BusinessCenterTime " minOccurs="0"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
