XML Schema Documentation

Complex Type: CommodityNotionalSchedule

[Table of contents]

Super-types: None
Sub-types: None
Name CommodityNotionalSchedule
Used by (from the same schema document) Model Group CommodityNotionalQuantity.model
Abstract no
Documentation The Notional Quantity per Calculation Period. There must be a Notional Quantity step specified for each Calculation Period, regardless of whether the Notional Quantity changes or remains the same between periods.
XML Instance Representation
<...
id=" xsd:ID [0..1]">
<notionalStep> CommodityNotional </notionalStep> [1..*]

'The Notional Quantity per Calculation Period. There must be a Notional Quantity specified for each Calculation Period, regardless of whether the quantity changes or remains the same between periods.'

Start Choice [1]
<calculationPeriodsReference> CalculationPeriodsReference </calculationPeriodsReference> [1]

'A pointer style reference to the Calculation Periods defined on another leg.'

<calculationPeriodsScheduleReference> CalculationPeriodsReference </calculationPeriodsScheduleReference> [1]

'A pointer style reference to the Calculation Periods Schedule defined on another leg.'

End Choice
</...>

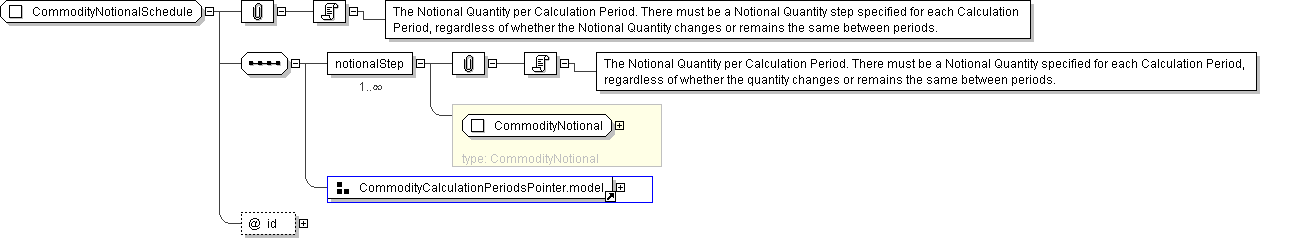

Diagram
group_CommodityCalculationPeriodsPointer.model
Schema Component Representation
<xsd:complexType name="CommodityNotionalSchedule">
<xsd:sequence>
<xsd:element name="notionalStep" type=" CommodityNotional " maxOccurs="unbounded"/>
<xsd:group ref=" CommodityCalculationPeriodsPointer.model "/>
</xsd:sequence>
<xsd:attribute name="id" type=" xsd:ID "/>
</xsd:complexType>
