XML Schema Documentation

Name	FacilityNoticeDetails.model
Used by (from the same schema document)	Complex Type FacilityNotice , Complex Type LoanContractNotice
Documentation	A model which contains all fields required on the business header section of a facility notice.

XML Instance Representation

<noticeDate> xsd:date </noticeDate> [1]

'The date on which the notice was generated.'

<eventId> EventId </eventId> [0..1]

'The identifier that defines the business event which requires the creation of a notice.'

<agentBankPartyReference> PartyReference </agentBankPartyReference> [0..1]

'A reference to the agent bank for the given deal.'

<borrowerPartyReference> PartyReference </borrowerPartyReference> [0..1]

'A reference to the borrower against the associated loan contract(s).'

<lenderPartyReference> PartyReference </lenderPartyReference> [0..1]

'A reference to the lender(s) associated with the associated loan contract(s).'

<dealSummary> DealSummary </dealSummary> [1]

'A data structure which contains the identifying characteristics of the given deal.'

<facilitySummary> FacilitySummary </facilitySummary> [1]

'A data structure which contains the identifying characteristics of the given facility.'

<facilityCommitmentPosition> FacilityCommitmentPosition </facilityCommitmentPosition> [0..1]

'A structure which contains the position being held by the lender on both the facility and loan contract levels. This position information is from the message sender\'s viewpoint as of the date of the associated notice.'

<exceptionFlag> xsd:boolean </exceptionFlag> [0..1]

'A flag which can be set by the message sender in order to signify an exceptional business event.'

<comments> xsd:string </comments> [0..1]

'A free-form, manually entered field which will be used by users directly for additional information.'

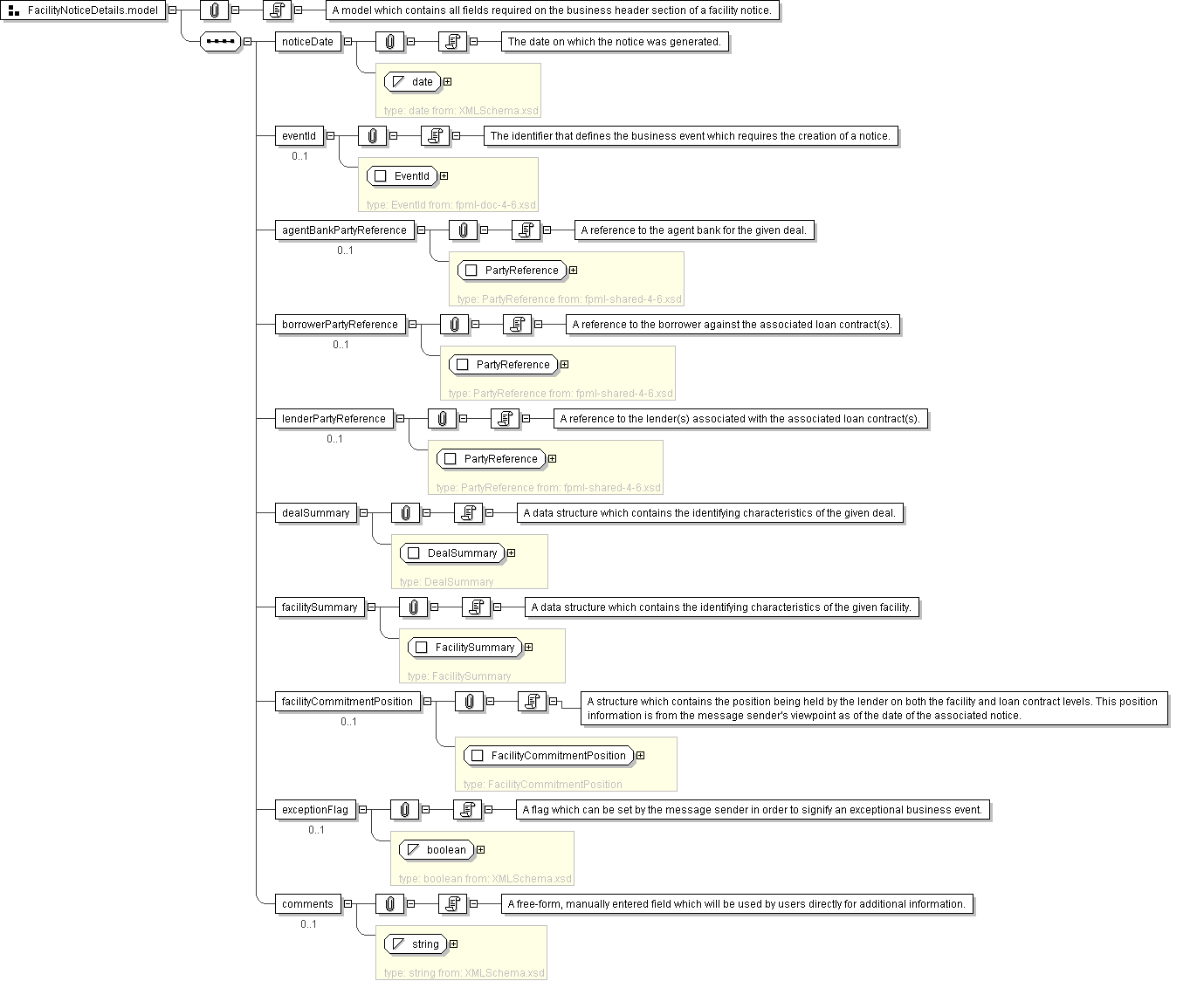

Schema Component Representation

<xsd:group name="FacilityNoticeDetails.model">

<xsd:sequence>

<xsd:element name="noticeDate" type=" xsd:date "/>

<xsd:element name="eventId" type=" EventId " minOccurs="0"/>

<xsd:element name="agentBankPartyReference" type=" PartyReference " minOccurs="0"/>

<xsd:element name="borrowerPartyReference" type=" PartyReference " minOccurs="0"/>

<xsd:element name="lenderPartyReference" type=" PartyReference " minOccurs="0"/>

<xsd:element name="dealSummary" type=" DealSummary "/>

<xsd:element name="facilitySummary" type=" FacilitySummary "/>

<xsd:element name="facilityCommitmentPosition" type=" FacilityCommitmentPosition " minOccurs="0"/>

<xsd:element name="exceptionFlag" type=" xsd:boolean " minOccurs="0"/>

<xsd:element name="comments" type=" xsd:string " minOccurs="0"/>

</xsd:sequence>

</xsd:group>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Model Group: FacilityNoticeDetails.model
