XML Schema Documentation

Super-types:	FixedPrice < SettlementPeriodsFixedPrice (by extension)
Sub-types:	None

Name	SettlementPeriodsFixedPrice
Used by (from the same schema document)	Model Group CommodityFixedPrice.model
Abstract	no
Documentation	A type defining the Fixed Price applicable to a range or ranges of Settlement Periods.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<price> xsd:decimal </price> [1]

'The Fixed Price.'

<priceCurrency> Currency </priceCurrency> [1]

'Currency of the fixed price.'

<priceUnit> QuantityUnit </priceUnit> [1]

'The unit of measure used to calculate the Fixed Price.'

<settlementPeriodsReference> SettlementPeriodsReference </settlementPeriodsReference> [1..*]

</...>

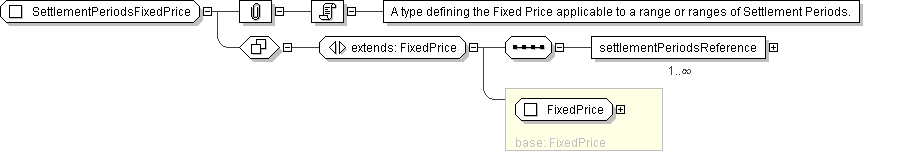

Diagram

Schema Component Representation

<xsd:complexType name="SettlementPeriodsFixedPrice">

<xsd:complexContent>

<xsd:extension base=" FixedPrice ">

<xsd:sequence>

<xsd:element name="settlementPeriodsReference" type=" SettlementPeriodsReference " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
