XML Schema Documentation

Super-types:	None
Sub-types:	None

Name	MarginRateChange
Used by (from the same schema document)	Complex Type PricingChangeNotice
Abstract	no
Documentation	The amount by which the margin rate has changed within a facility.

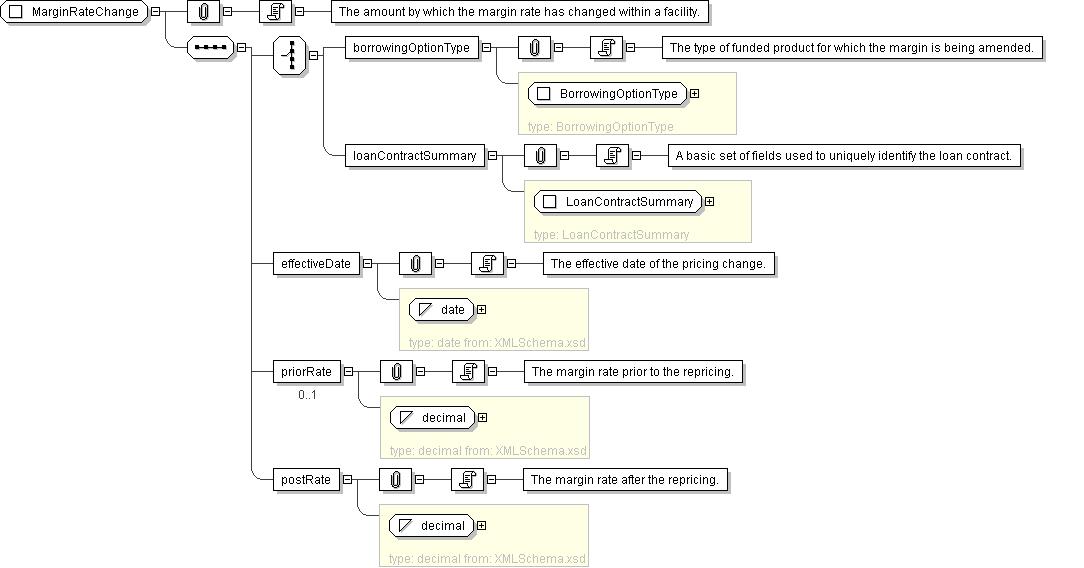

XML Instance Representation

<...>
Start Choice [1]

<borrowingOptionType> BorrowingOptionType </borrowingOptionType> [1]

'The type of funded product for which the margin is being amended.'

<loanContractSummary> LoanContractSummary </loanContractSummary> [1]

'A basic set of fields used to uniquely identify the loan contract.'

End Choice

<effectiveDate> xsd:date </effectiveDate> [1]

'The effective date of the pricing change.'

<priorRate> xsd:decimal </priorRate> [0..1]

'The margin rate prior to the repricing.'

<postRate> xsd:decimal </postRate> [1]

'The margin rate after the repricing.'

</...>

Schema Component Representation

<xsd:complexType name="MarginRateChange">

<xsd:sequence>

<xsd:choice>

<xsd:element name="borrowingOptionType" type=" BorrowingOptionType "/>

<xsd:element name="loanContractSummary" type=" LoanContractSummary "/>

</xsd:choice>

<xsd:element name="effectiveDate" type=" xsd:date "/>

<xsd:element name="priorRate" type=" xsd:decimal " minOccurs="0"/>

<xsd:element name="postRate" type=" xsd:decimal "/>

</xsd:sequence>

</xsd:complexType>
