group "CommodityFixedPhysicalQuantity.model"
Namespace:
http://www.fpml.org/FpML-5/recordkeeping
Content:
3 elements
Defined:
globally in fpml-com-5-3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 3 locations

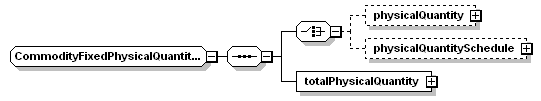

Content Model Diagram
Complex Content Model
(physicalQuantity? | physicalQuantitySchedule?), totalPhysicalQuantity
Content Model Elements (3):
physicalQuantity (defined in CommodityFixedPhysicalQuantity.model group),
physicalQuantitySchedule (defined in CommodityFixedPhysicalQuantity.model group),
totalPhysicalQuantity (defined in CommodityFixedPhysicalQuantity.model group)
Known Usage Locations
Annotation
The different options for specifying a fixed physical quantity of commodity to be delivered.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="CommodityFixedPhysicalQuantity.model">
<xsd:sequence>
<xsd:choice>
<xsd:element minOccurs="0" name="physicalQuantity" type="CommodityNotionalQuantity"/>
<xsd:element minOccurs="0" name="physicalQuantitySchedule" type="CommodityPhysicalQuantitySchedule"/>
</xsd:choice>
<xsd:element name="totalPhysicalQuantity" type="UnitQuantity"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
physicalQuantity
Type:
CommodityNotionalQuantity, complex content
The Quantity per Delivery Period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="physicalQuantity" type="CommodityNotionalQuantity"/>
physicalQuantitySchedule
Type:
CommodityPhysicalQuantitySchedule, complex content
Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="physicalQuantitySchedule" type="CommodityPhysicalQuantitySchedule"/>
totalPhysicalQuantity
Type:
UnitQuantity, complex content
The Total Quantity of the commodity to be delivered.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="totalPhysicalQuantity" type="UnitQuantity"/>
